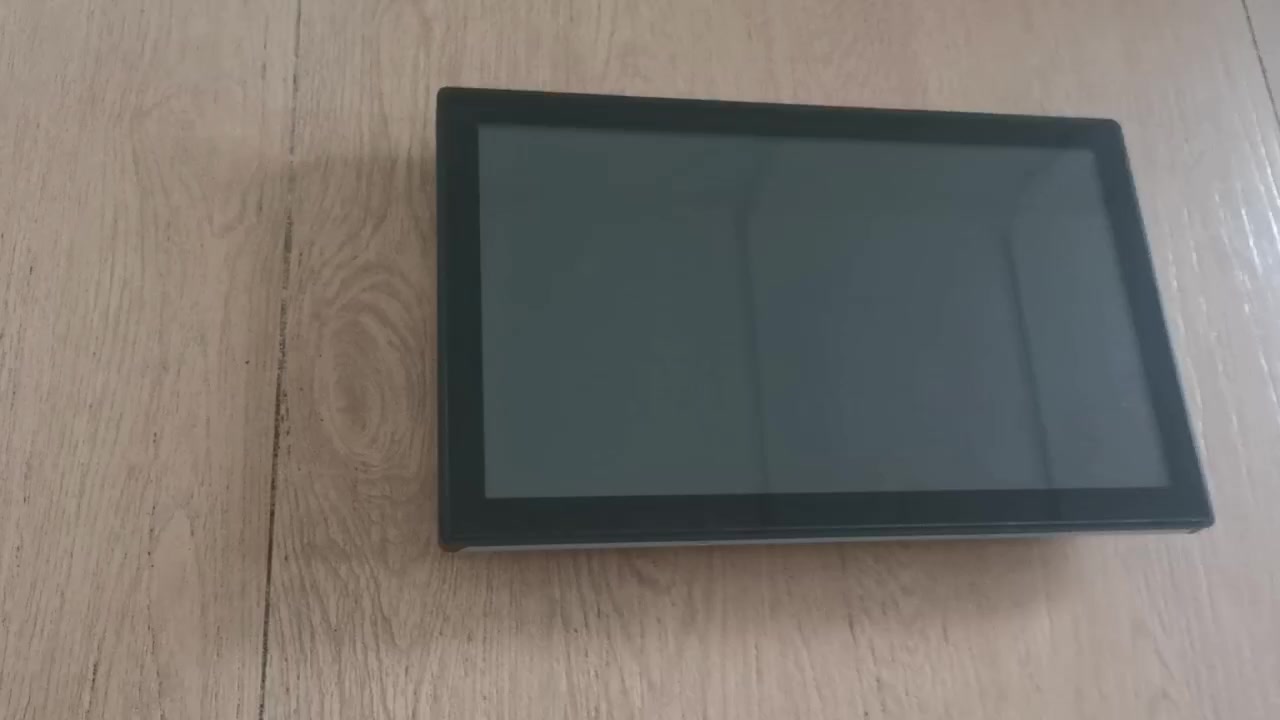

23.8 inch rugged display

The Hlink-238CS-BS is a versatile display with HDMI/VGA/USB(optional) input that can be mounted into a cutout in an enclosure .The front panel is made of aluminum panel, which is rugged and durable, The front bezel of the monitor is IP65 rated for protection from liquids and dust.It can also be equipped with optional low-temperature heating components, programmable bezel pushbuttons,optical bonding of protective glass,touch screen,EMI filtering,and custom anti-reflective/anti-glare AR/AG coatings.

The power inpout is a wide range 9~36VDC power input for applications. the same model is available in screen sizes up to 55". This monitor can be connected to a rugged fanless PC.



Specifications:

  • 23.8" LCD with 1920 x 1080 Resolution

  • Optional High Brightness that can reach 1200 Nit  for LCD(high brightness variation)

  • Optional Wide Range DC 9~36V Power Input

  • IP65 Compliant Front Panel

  • Touchscreen (Optional)

  • Optical bonding(Optional)

  • NVIS support(Optional)

  • EMI mesh filter(Optional)

  • PCB conformal coating for protecting circuitry in harsh environments

  • Heater for protection at low temperatures with -40°C(Optional)

  • Add or remove interfaces as required

  • Customized housing and optional monitor handles(Optional)

  • Image enhancement technology


    Environmental Requirements:

  • Operating Temperature:-20 to 55 °C

  • Non-Operating Temperature:-40 to 71 °C

  • Operating Humidity:95% R.H. @max. 40 °C

  • Vibration:MIL-STD-810G

  • Shock:MIL-STD-810G

  • Operating Altitude:0 to 4000 ft




Buy now with PayPal for 1-5 units samples
