Size / Aspect Ratio | 19' Diagonal/4:3 |
Active Size (WxH) | 376.32(W)x301.06(H) mm |
Native Resolution | 1280x1024 |
Number of Colors | 16.7M |
Brightness (white) | 350nits/500nit/1000nit optional |
Viewing Angle (Hori/Vert) | 170H,160V |
Contrast Ratio | 1000:1 |
Backlight Brightness half-life | 50000 hours |
Input Signal | HDMI/VGA |
Input Power | DC12V |
Touch screen input | USB |
Touch type | Capactive touch screen |
Touch structure | G+G |
Touch points | 10 points |
Touch life | 10 million |
Operating Temperature | -20ºC~+55 ºC |
Relative Humidity | 95±5%(0ºC ~+60 ºC) |

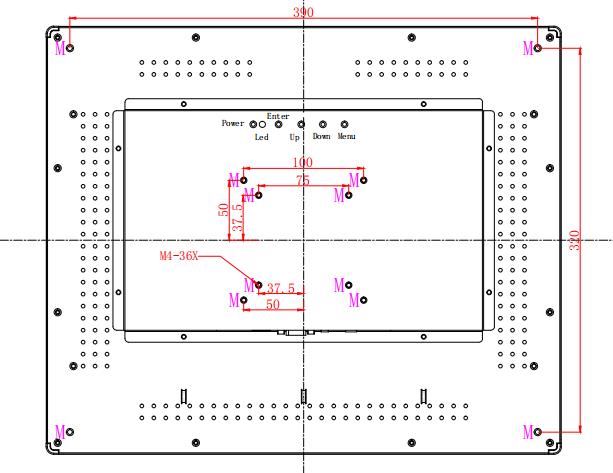

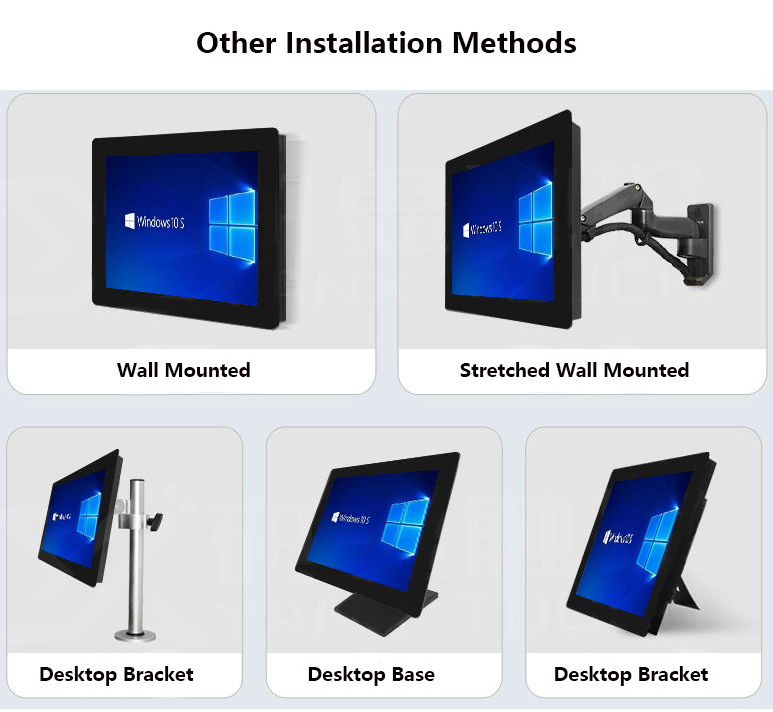

Enclosure Type | Panel mount with M4 studs+VESA mount with M3 studs |
Front Panel Rating | IP67 |
Outline Dimensions (WxHxT) | 429.6x357x43mm |
Net / Shipping Weight | 3.5kg/7.5KG |
